Grid-Scale Battery Energy Storage Solutions
Scalable battery energy storage systems for utility, substation and renewable energy projects, designed for large-scale power management and grid integration.
Utility-Scale BESS
Utility-scale battery energy storage systems are designed for large-scale electricity storage and grid applications.
These systems can consist of multiple battery containers connected through power conversion equipment, transformers and electrical infrastructure.
The overall configuration depends on project capacity, power rating, grid connection requirements and operating strategy.
Grid-Scale BESS System Architecture
A grid-scale battery energy storage project normally combines multiple subsystems to connect battery storage with the electrical grid.

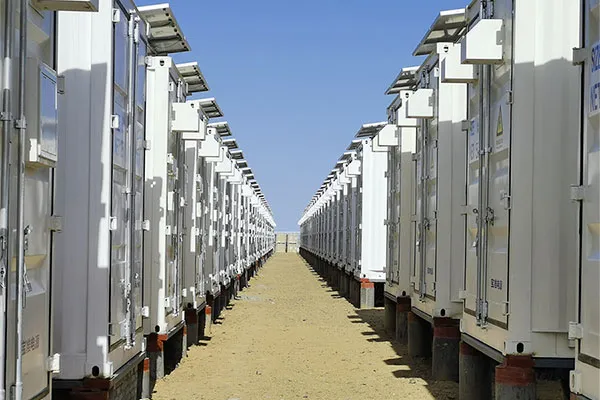

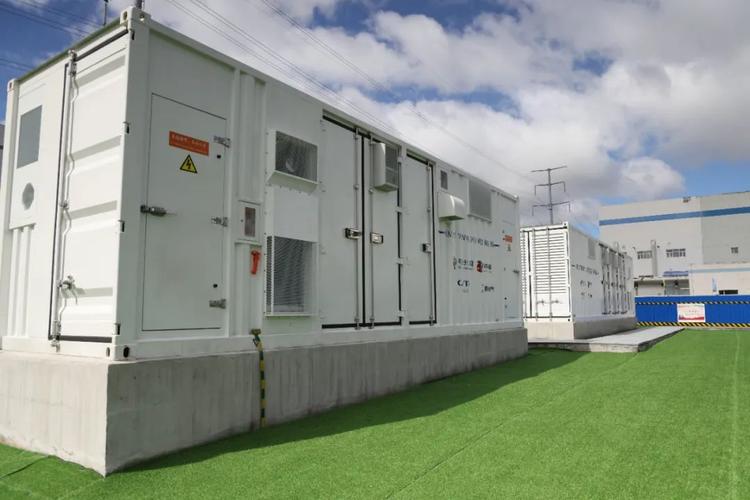

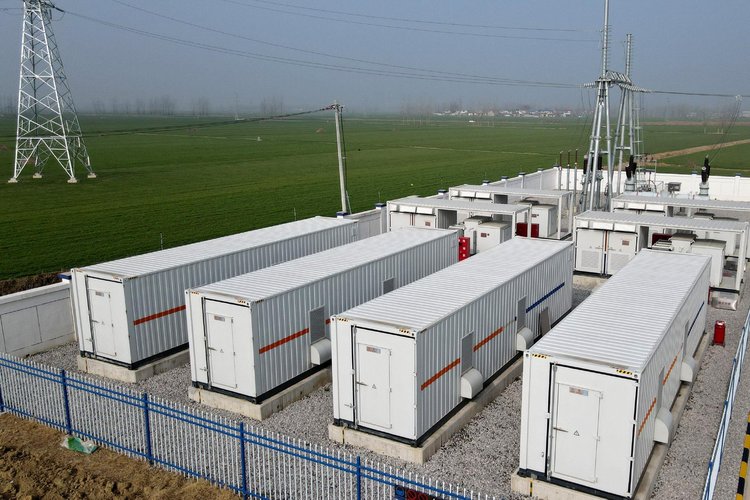

Containers

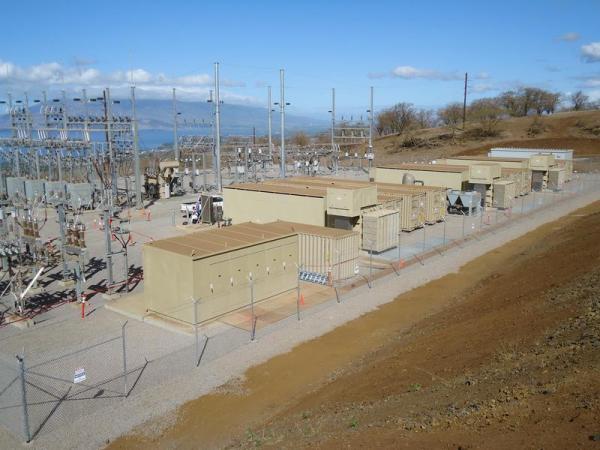

Battery containers provide energy storage capacity. PCS equipment manages power conversion, while transformers and substations provide the electrical interface between the BESS installation and the grid.
Grid-Scale Battery Energy Storage Applications
Large-Scale Battery Storage
Scalable Capacity
Multiple battery containers can be combined to achieve the required energy storage capacity.
Power Conversion
PCS systems provide controlled conversion between battery DC power and AC electrical systems.
Grid Integration
The BESS can be connected to grid infrastructure through suitable transformers and electrical equipment.
Grid-Scale BESS Design Considerations
Large-scale energy storage projects require careful consideration of energy capacity, power rating, battery configuration, electrical connection, thermal management, fire protection and site conditions.
Energy Capacity
Determine the required energy storage capacity according to project operation and dispatch requirements.
Power Rating
The PCS power rating should match the required charging and discharging performance.
Site Conditions
Container layout, environmental conditions, access and electrical infrastructure should be considered during project planning.
Grid-Scale BESS FAQ
Grid-scale battery energy storage refers to large battery storage systems connected to utility or electrical grid infrastructure.
BESS is a general term for battery energy storage systems. Grid-scale BESS specifically refers to systems designed for large-scale utility or grid-connected applications.

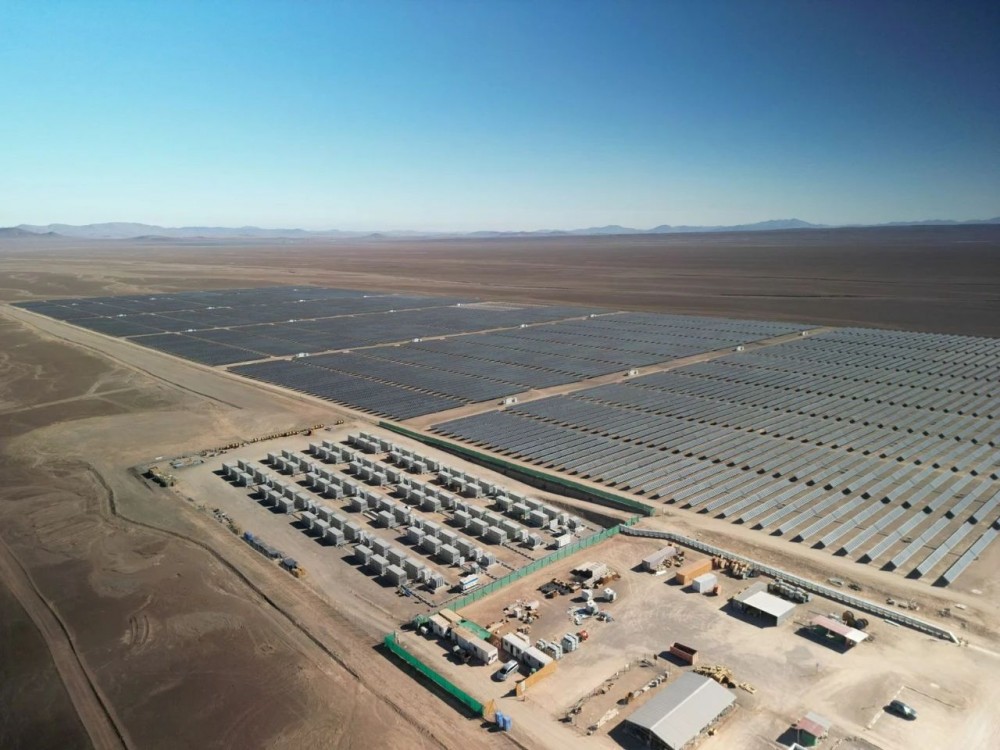

Yes. Grid-scale battery storage can be integrated with renewable energy projects to support energy management and grid integration.
Planning a Grid-Scale Battery Storage Project?
Send us your project capacity, power requirement, grid connection conditions and project location.
Talk to Our Engineering Team →
